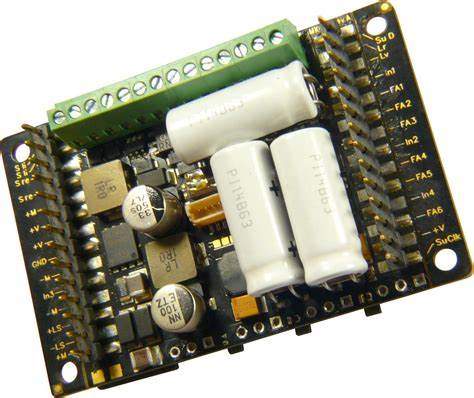

ZI-MX699LM TrueSound Integrated DCC-Sound decoder (w/ header pins, for LGB/Marklin interface, 6A/10A)

TrueSound DCC^™ MX699LM
The best in DCC and Sound that the market has to offer. I never knew how good a locomotive could sound until I listened to ZIMO.

Zimo has been the world leader of DCC and always pushes forward. The good news is that with Zimo you are never obsolete.

Features of the MX699LM:

• Special Decoder for the new Maerklin LGB interface (Plug n Play)
• Optimized Analog
• 6A (10A peak) total output capacity
• 28 function control of which are 8 output functions * TrueSound^™ sound generator and sound projects
• Special fan control output for load and chuff synchron smoke
• 40 parallel sound storage channels
• 4 parallel sound output channels for polyphonic sound
• 4/8 Ohm impedance
• 32Mbit sound buffer
• 10 Watts output at 4 Ohm
• fully customizable via free software
• 4 servo control outputs
• 3 trigger inputs
• 3 Supercaps on board with 8V, 1F
• expandable electronic flywheel input (capacitor buffer)
• 5V, 10V and variable low voltage outputs
• Volume control
• 2x12, and 1x6 (30) pin terminals and 4x3 Servo connectors
• Size (inch): 1 31/32 x 1 37/64 x 35/64 | (mm): 50 x 40 x 14
